Product Overview

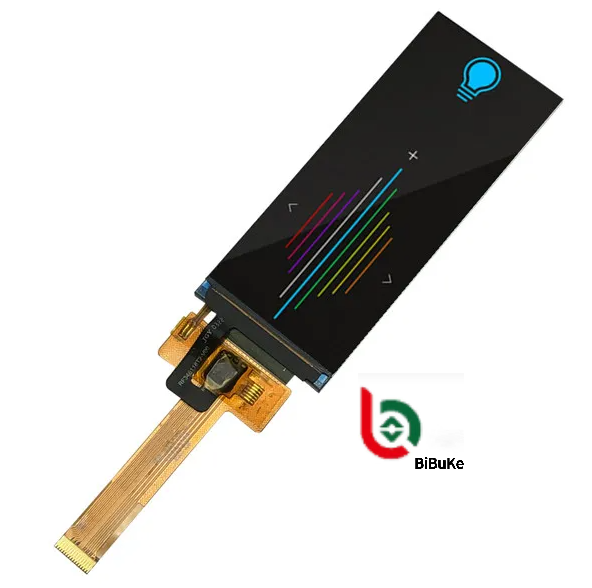

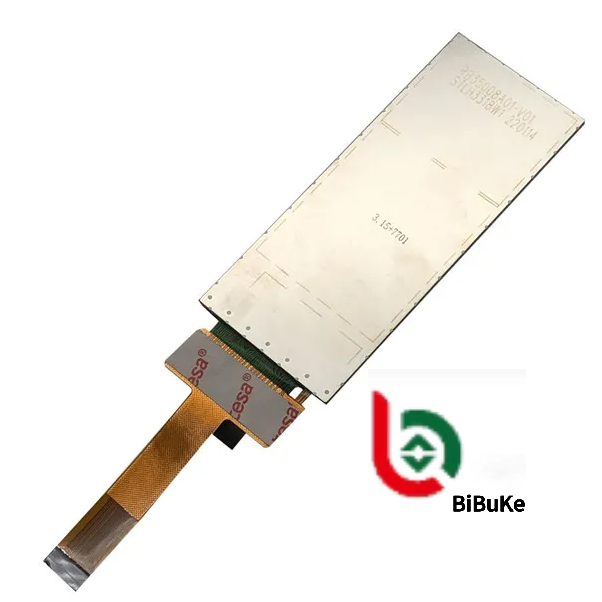

This high-performance display module is specifically designed for vertical narrow and long scenarios. With a resolution of 340×800 and display area of 33.97×81mm, it presents an optimal slender strip-shaped display form.
Technical Features
- IPS (planar conversion) technology with full-view display capability (80° in all directions)
- 16.7 million colors display with rich and realistic color reproduction
- Brightness range: 330~580 cd/m² (customizable) with strong outdoor visibility
- White LED backlight with optional capacitive touch panels (CTP On-Cell/In-Cell)
- Ultra-thin design at 1.6mm thickness for compact device integration
- Operating temperature: -20℃ to 70℃, Storage temperature: -30℃ to 80℃
- MIPI DSI high-speed interface with low power consumption and strong anti-interference
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Is this possible?
Yes, please send us your specifications or drawing. If you don't have specifications, provide samples and we'll recommend suitable products or customize based on your requirements.
This LCD is what we want, but it's too big. Do you have smaller sizes?
For segment type LCD modules requiring size or content modifications, we can create new LCD glass modules with custom tooling.
Can you change HTN type to STN type?
Yes, we can modify the display type according to your request.
Can you customize a new LCD module?
Yes, we provide full customization services. Please send your drawing or provide outline size, display information, glass thickness, polarizer type, display type, connector mode, temperature specifications, and drive conditions.
What is the lead time for tooling?
Typically 15 to 25 days after drawing confirmation and tooling charge payment. We'll provide exact timelines upon drawing approval.
Can you send samples for evaluation?
Yes, sample orders are available for testing and evaluation.
What is the production lead time?
Standard products in stock: 1 day after payment. Mass production for custom orders: 15-30 days. We'll notify you if we can complete earlier.
